URS40 Roller Blinds Sunscreen Fabrics

Short Description:

• Composition (TR ): 30% Fiberglass,70% PVC
• Width:2.5m,2.8m,3.0m
• Openness Factor:5%
• Light Fastness: 5-6 (Blue Scale) Tested to ISO 105-B02:2014
• Nominal weight:554±5%gsm (TR)
• Nominal thickness: 0.70 mm (TR)

The URS40 series sunscreen rolling fabric is characterized by maximizing the entrance of light without sacrificing privacy, allowing a gentle observation of the appearance and protection of two ultraviolet rays. It is made of 30% glass fiber and 70% PVC, and the opening rate is 5%. Therefore, this fabric is usually used for indoor blinds, sunscreen blinds, screen shutters, translucent screen shutters, and can also be used in home sunscreens, hotel sunscreens, and office sunscreens.


Product Detail

OVERVIEW

PACKING & SHIPPING

QUALITY ASSURANCE & WARRANTY

Fabric name: URS40 Roller Blinds Sunscreen Fabrics
Code: URS401-4013
Composition(TR): 30% Fiberglass,70% PVC
Application: Roller blinds Roman blinds and Panel Blinds
Technical Data:
• Composition (TR ): 30% Fiberglass,70% PVC
• Width:2.5m,2.8m,3.0m
• Openness Factor:5%
• Light Fastness: 5-6 (Blue Scale) Tested to ISO 105-B02:2014
• Nominal weight:554±5%gsm (TR)
• Nominal thickness: 0.70 mm (TR)
Roller binds fabric Roller Blinds Sunscreen Fabrics home roller blinds

Production Process:
Spinning yarns
Weave base fabric
Coating fabric (White Foam Coated/Color Foam Coated)

slun

slun01

slun02

slun03

Applications of sunscreen roller blinds Fabric:

It is a functional system, which occupies very little space once collected. Thanks to our different tube diameters and mechanisms, they can also be mounted on large windows. A comfortable and simple system. Screen fabric is the most used for its thermal functions, improving the energy efficiency of our home or our office. In addition to being fire retardant, we prevent the screen blind from being a source of fire, complying with the safety regulations requested by the EU, which are suitable for installation in addition to our house, in schools, restaurants, kitchens, offices, etc. The roller blinds, in addition to manufacturing them with the screen fabric, we also make them with opaque and translucent fabrics.

UNITEC Type of roller blind-function and style3

Description of sunscreen fabric
The sunscreen fabrics of the invention have a knit base fabric which is preferably a warp knit construction, Such as a raschel or tricot knit. The sunscreen fabric is preferably at least a two-bar construction, though it may be made from three bars, four bars, etc., depending on the complexity desired for the pattern.

The fabric is preferably constructed to have from about 1% to about 15% openness, Especially screen 5% (defined as the amount of open space relative to the total fabric area.) As will be readily appreciated by those of ordinary skill in the art, the level of openness can be Selected to tailor the amount of light that it is desired to let pass through, the amount of Screening desired, etc. For example, Sunscreens designed to be used on windows on the Sun-facing side of a building may be designed to be less open, while those for the Shady Side of a building may be designed to be more open, to enable more natural light to enter the room.

We have various colors collection for choose:

Roller Blinds Sunscreen Fabrics6

展示图 (2)




  • Previous:
  • Next:

  • . Parameters:
    Application: Roller blinds, Roman blinds and Panel Window Blinds
    Technical Data:
    •Composition (TR): 30% Fiberglass,70% PVC
    •Width: 2.5m,2.8m,3.0m
    •Openness Factor:5%
    •Light Fastness: 5-6 (Blue Scale) Tested to ISO 105-B02:2014
    •Nominal weight: 554±5% gsm (TR)
    •Nominal thickness: 0.70mm (TR)
    •Fire Classification: California U.S. Title 19 (small scale), NFPA 701-2010 TM#1 (small scale), BS 5867 2008 Part 2 Type B Performance.
    Performance:

    2. Certification



    slun07

    slun08



    1. Packing:
    Length per roll: 30m/30 yards
    Inner packing: hardboard tube and kraft paper/ poly bag
    Outer packing: hardboard tube and tube cover

    Roller Blinds Sunscreen Fabrics6

    Selby Blackout8

    Sunscreen Fabric8

    Sunscreen Fabric9

    Sunscreen Fabric10

    Container Loading:

    LOADING1

    LOADING2

    Shipping Method:
    Air Shipment & Sea Shipment

    Incirlik AB

    Roller Blinds Fabric15

    Quality Assurance & Warranty
    The final inspection would be made before shipment.
    1. Inspect the flatness

    inspection-1

    inspection-2

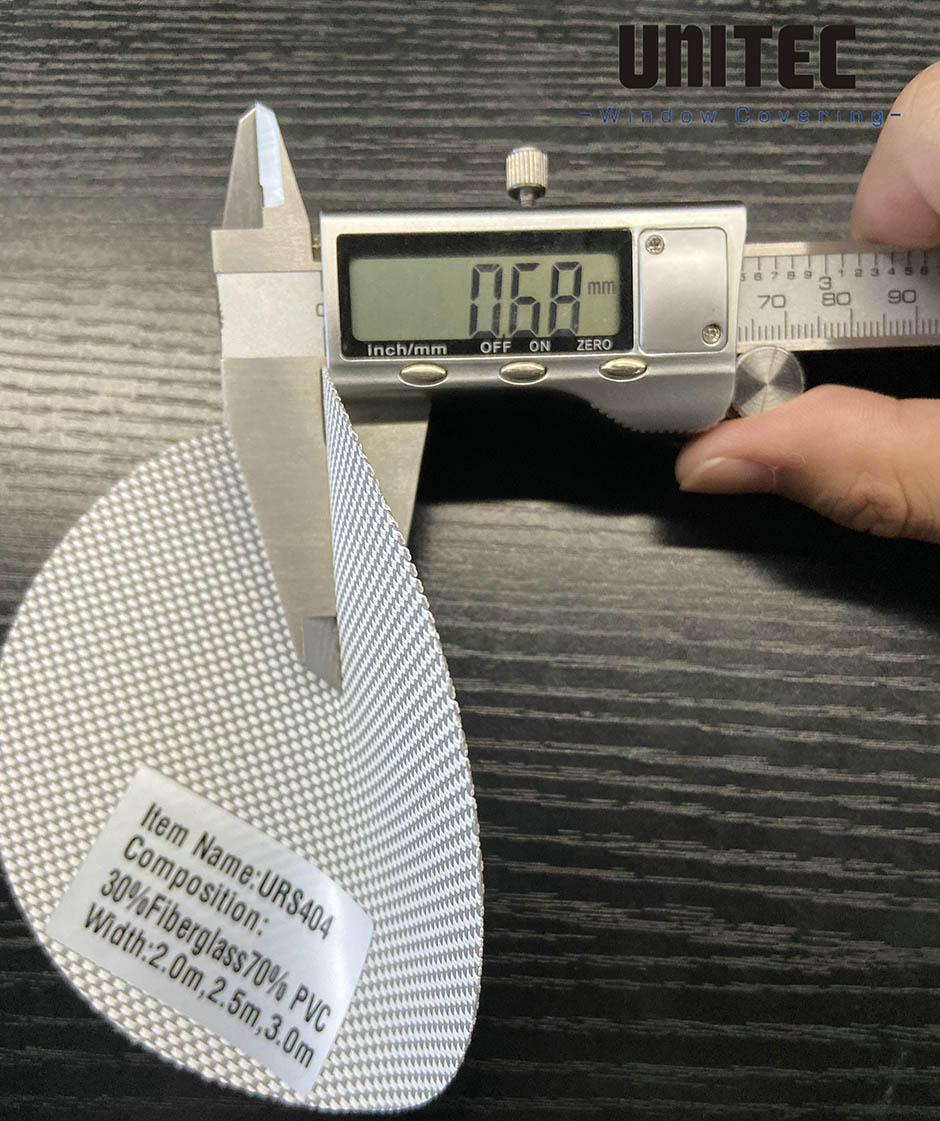

    2. Fabric Thickness

    Roller Blinds Sunscreen Fabrics8

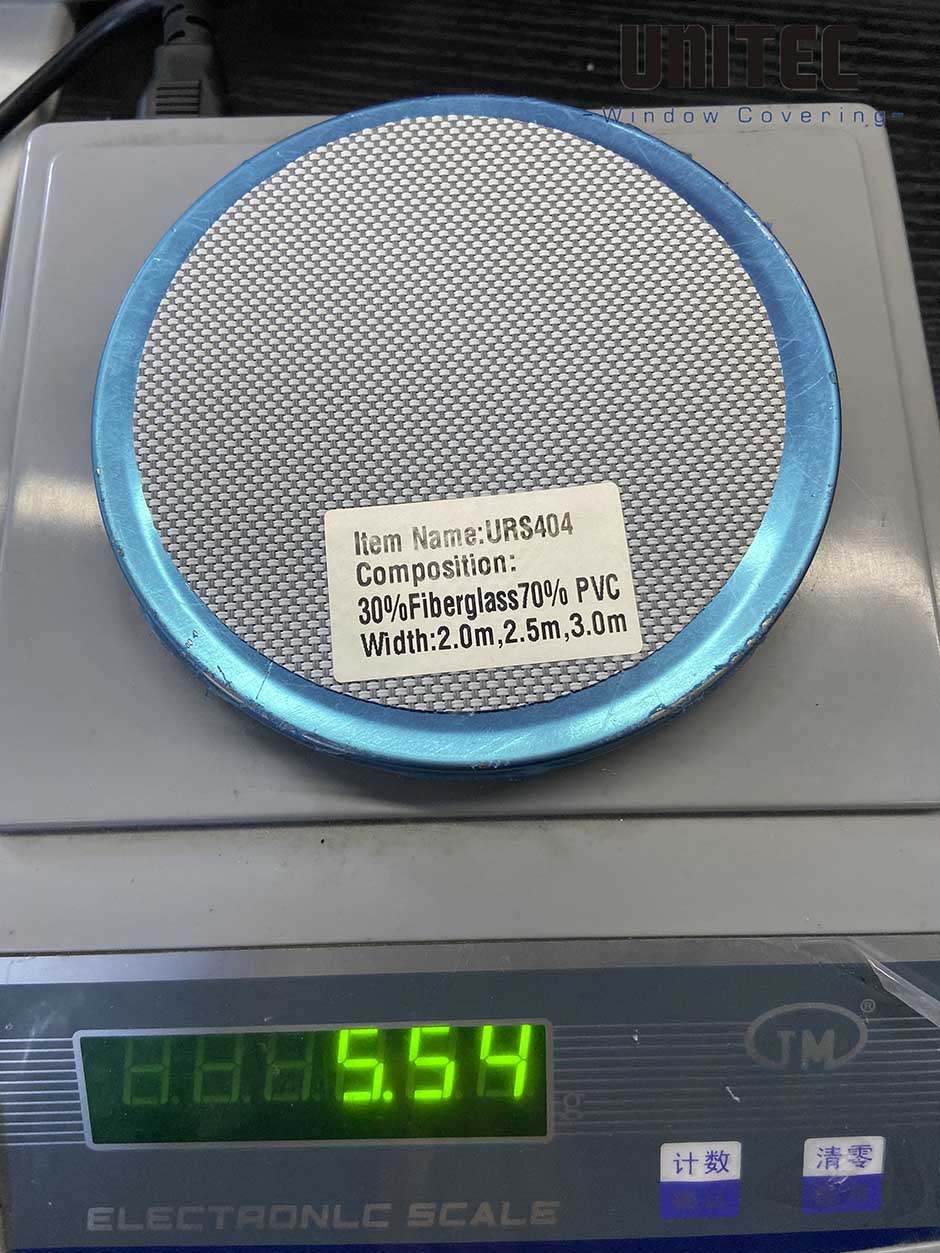

    3. Fabric Weight

    Roller Blinds Sunscreen Fabrics9

    Inspection Report made by QC team

    Roller Blinds Fabric-18

    Roller Blinds Fabric-19

    Warranty:
    UNITEC has passed the certification of ISO9001-2008, SGS, CE, INTERTEK and a strict QC system including IQC (Income Quality Control), IPQC (In Process Quality Control), FQC(Final Quality Control) and QA (Quality Assurance). Our mission at UNITEC is to deliver the highest quality of roller blind fabrics, this is why we provide our customers with the security of quality warranty on all of the products. To protect you even further, UNITEC now offers one extra year warranty, in addition to the standard 4-year product warranty, on a selection of products to ensure continuous peace of mind. Don’t miss out! Place your order to get the warranty now!

    5-years
